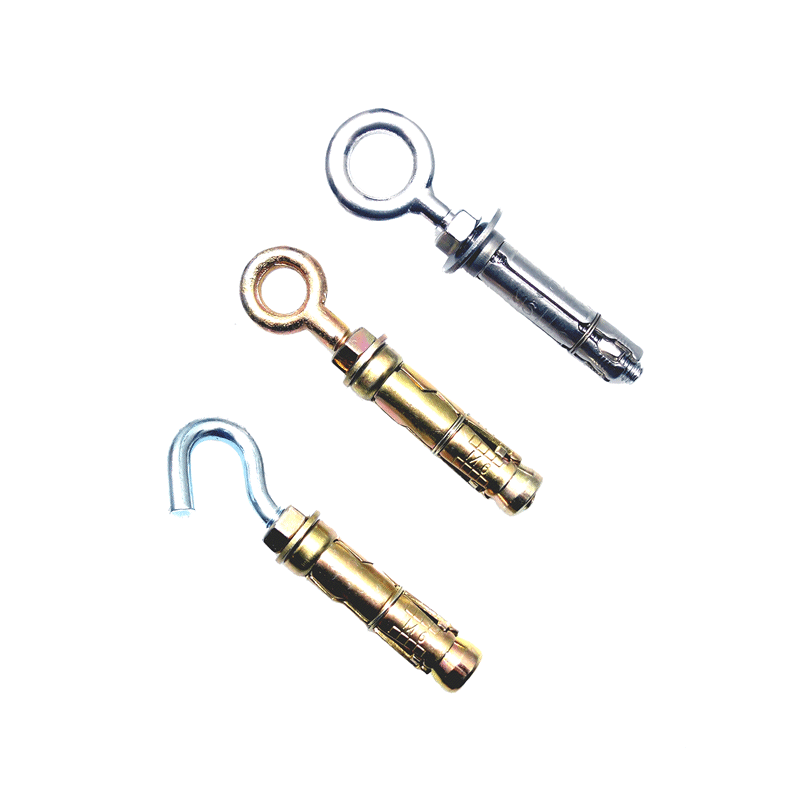

• Corner fixings for masonry substrates including brick, block and concrete
  • M6 & M8 eye bolts used as a pemanent netting corner fixing
  • M6 & M8 hook bolts used as a de-mountable netting corner fixing.
  • These corner fixings are designed to take the majority of the strain imposed by the barrel strainers
  • Use one on each corner, one every 10 metres of wire and for securing cross wires
  • Compatible with 2mm and 3mm diameter wire rope

13.73 (ex.VAT )

Specification

M6 shield sleeve  = 50mm long, with a 10mm internal diameter forged eye fitting. Shield anchor requires a 12mm diameter hole in the masonry. Yellow passivated shield, bright zinc plated eye.

Usage

Can be used in brick, cement / render, concrete and natural stone as an anchor point for the corners of netting frameworks.

Use M6 fittings with 2mm wire rope on runs up to 10m in length. Use M8 fittings with 3mm wire rope or on runs of over 10m

Weight 0.3 kg
