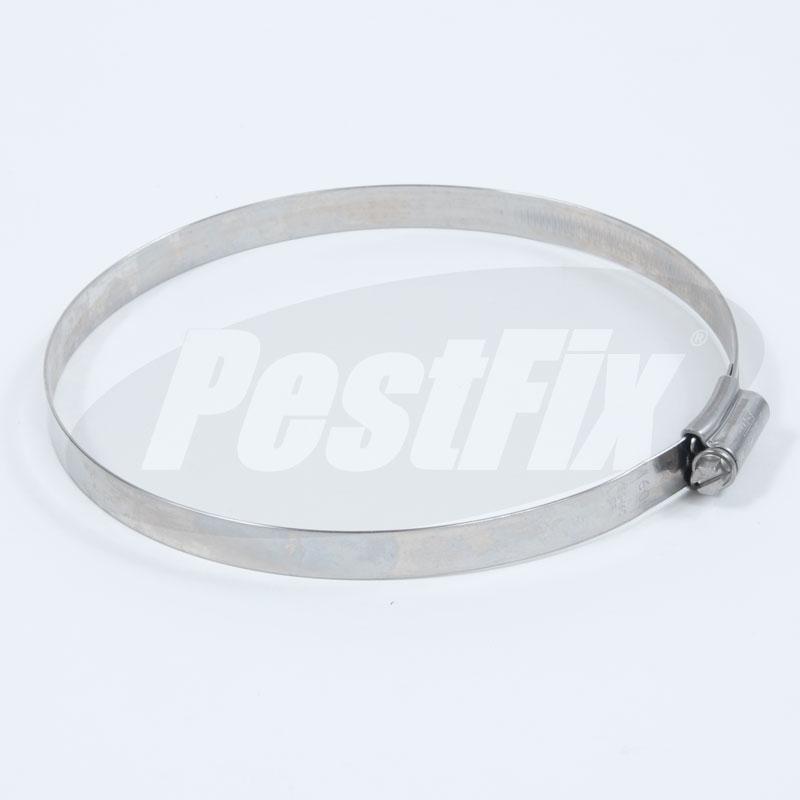

• Adjustable stainless steel rail clamps for use with Pigeon and Seagull Rail Posts
  • Rail clamp posts not included (RailClampPost), purchase separately.
  • Used to attach rail clamp posts to tubular substrates including pipes and handrails
  • Accepts up to three rail clamp posts with a special foot design that sits under the rail clamp
  • Use the 7mm hexagonal slotted screw to adjust the clamp to fit the rail
  • 25mm – 160mm rail clamps from stock. Other sizes to special order

34.8054.50 (ex.VAT )

Clear

Specification

Owl Rail Clamp and Rail Clamp Post systems are vastly more flexible than the pre-fabricated variants offered by our competitors. This system allows the user to specify single, double or triple post arrays under each clamp, depending upon the width of the surface to be protected and the the level of bird pressure

Stainless steel 18/8 construction

Sold in packs of 10

Non perforated band design

Use 7mm hex-head nut spinner to tighten the adjuster.

Usage

Use at max 1.5m spacings with Rail Clamp Post

Can also be used as an anchor point on its own without a post to secure counter tension wires

Undo the rail clamp fully and gently prize it apart just enough to allow it to be fitted around the rail or pipe.

Re-assemble the rail clamp but leave it loose with enough gap between it and the rail or pipe to allow the pigeon/seagull post to be slid underneath.

Place the pigeon post or gull post into position on the rail or pipe

Slide the rail clamp into position over the foot of the pigeon/seagull post.

rotate the clamp until the adjuster is in the optimum position where it is going to be least visible

tighten the rail clamp adjuster with either 7mm nut spinner, 7mm ratchet socket wrench or flat-bladed screw driver, until the pigeon / seagull post is securely held in position



Weight N/A
Select Size

Rail Clamp 25-35mm 10 Pack: €34.80, Rail Clamp 40-60mm 10 Pack: €39.10, Rail Clamp 60-80mm 10 Pack: €42.10, Rail Clamp 130-160mm 10 Pack: €54.50
